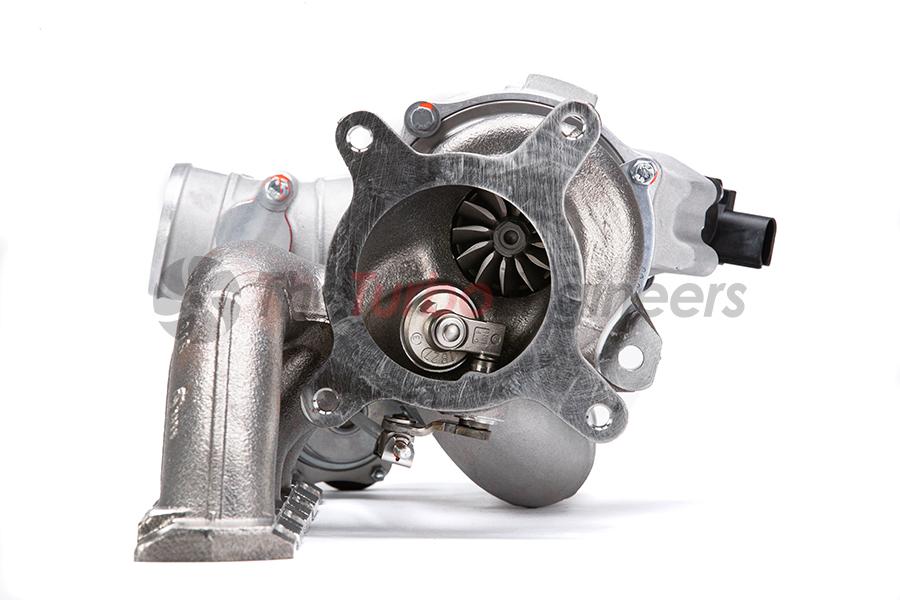

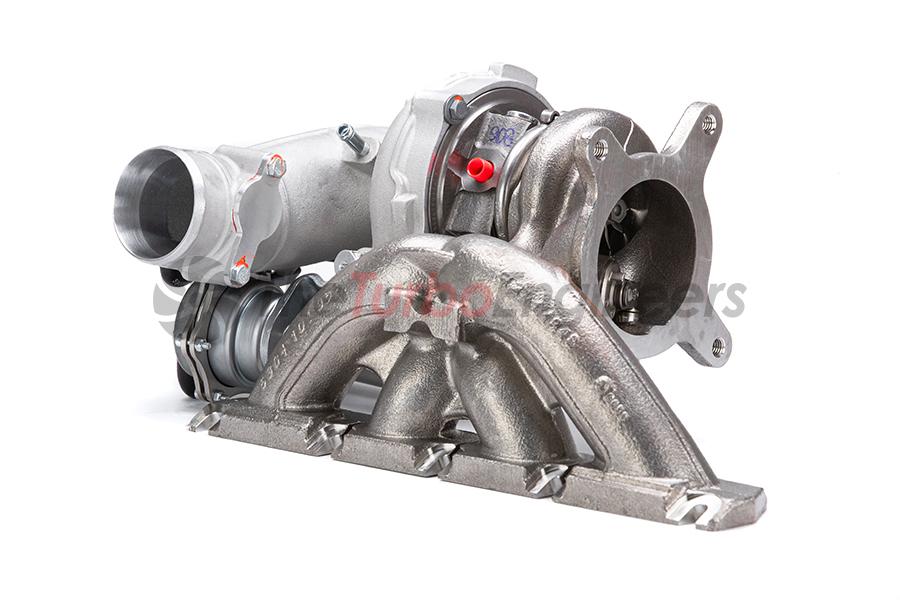

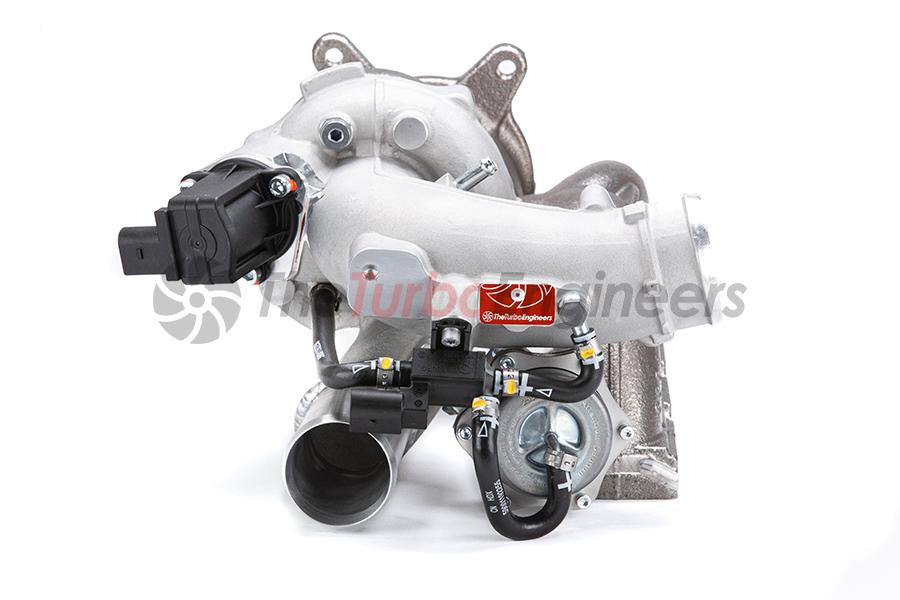

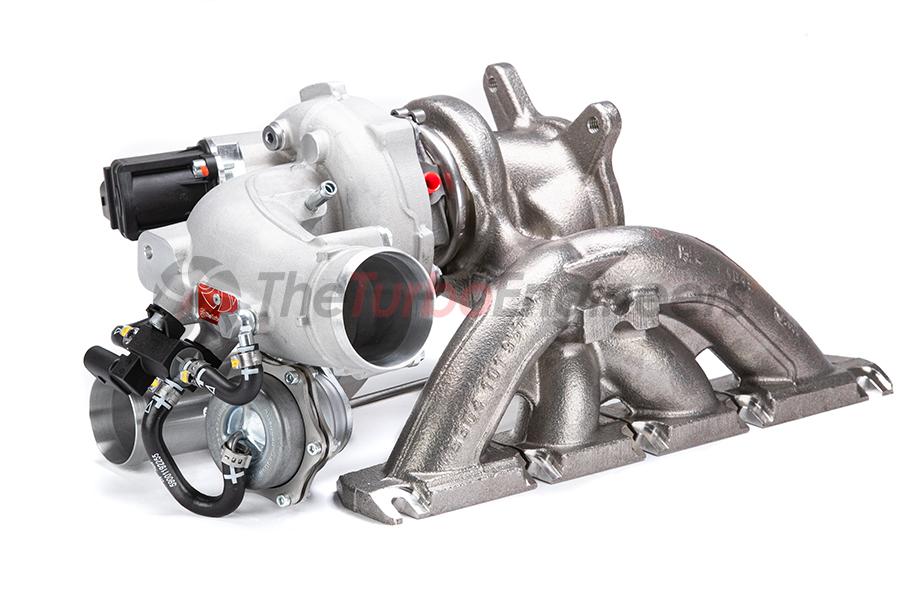

TTE420 VW MK6 GTI Turbo Upgrade TSI

TTE-420-TSI-6GTI
$4,250.00

VAG 2.0 TSI EA888.1 TTE420 UPGRADE TURBOCHARGER

TTE420 begins as a brand new standard BorgWarner K04-064 turbocharger that we dismantle and then set about upgrading and optimizing as engineers to create our ultimate K04 frame hybrid for the EA888.1. TTE420 Turbocharger is great power stage for the 2.0 TSI range of vehicles while retaining near like OE fitment.

Engineered & Enhanced

The formula to making a TTE420 starts with a much larger 2871X TTE billet compressor wheel, chosen because is highly efficient, new generation type with very thin blades, creating an extremely high flow for comparative size, giving a compressor map that's very wide. The Re-profiled compressor cover is machined to an optimized tolerance to ensure maximum compressor efficiency. We blank of the original PCV port as not required and fit our TTE smooth flow optimized billet blanking plate cover. The intake pipe is CNC ported and hand finished with the TTE smooth flow cover fitted to give a smooth tract and transition for the incoming air for the ultimate flow.  The boost outlet is modified and welded into correct position.

We also fit our Billet CNC TTE Boost adapter & silencer delete. Removing any restriction so improving the flow and enhancing the sound. We CNC mill the compressor cover to accept our CNC Billet TTE Recirculation Valve Adapter to fit an Original VAG Recirculation valve to give OE like fitment with trouble-free operation.

A key part to driving the large 2871X compressor and in turn making this unit produce the huge power advantage over stock is machining and fitting a far larger BorgWarner K16 curved clipped turbine and shaft, while still keeping the k04 core, this is not so easy to do. This K16 turbine gives much lower back pressure and keeps EGT lower compared to stock K04 turbine or clipped stock.

The clipping of the K16 turbine reduces blade area thus increasing gas flow and so reducing back pressure and lowering exhaust gas temperatures, allowing safer higher boost level's. This process also gives a secondary advantage of removing some material, lightening the turbine thus reducing the rotational mass improving moment of inertia. Dyno's have shown little loss in response vs stock K04 yet huge gains in power and torque.

Special TTE developed in house 360 deg high-performance motorsport journal bearing system is fitted. Durable at high loads with no loss in transient response.

The actuator used is uprated sprung OE unit, fitted with our reinforced clamps for trouble-free operation.

Equilibrium

Precisely balancing our turbochargers is a key critical factor to become a TTE upgrade unit as longevity and performance are paramount. Good balance improves acoustics also. Subsequent great care is taken with all TTE turbochargers to achieving our balance standards. Firstly parts are balanced at slow speeds up to 2800RPM in multiple planes using our single parts machine, then components are assembled and then the CHRA are dynamically balanced, but this time depending on application at up to 250,000 RPM in multiple planes using our in house VSR machine to acquire the ultimate equilibrium, to a standard far higher than OEM. Each turbocharger is supplied with serial numbered balance test result document.





Features

  • Genuine BorgWarner Housings
  • TTE 2871X Billet Highly Efficient Next Gen Compressor Geometry
  • Optimised Compressor Cover Machining Clearances
  • Modified silencer discharge delete 50mm Outlet
  • CNC Ported Intake Pipe
  • Genuine BorgWarner K16 Turbine, Clipped & lightened
  • Genuine BorgWarner Uprated & Reinforced Actuator
  • Genuine OEM Pierburg N75 Valve
  • Genuine Original diverter valve
  • Special TTE K16/K04 Reinforced Bearing System
  • Plug & Play with use of a 90deg silicone hose for boost outlet
  • 420 PS+ Proven
  • Single parts finely balanced then components assembled and core high-speed VSR balanced
  • Supplied with a balance test result document
  • Proven TheTurboEngineers quality
  • Made in Germany
