034 Motorsport Australia - (MQB) Front Subframe Locking Collars. Audi 8V/8S A3/S3/RS3/TT/TTS/TTRS & Volkswagen Golf GTI/R MK7.5/MK8R - 034-601-0028.
034 Motorsport is pleased to present the Stainless Steel Subframe Locking Collar Upgrade Kit for the 8V Audi A3/S3/RS3 & 8S Audi TT/TTS/TTRS! Also fits the 7.5 or facelift 7R and GTI. Fits MK8R. You will need to check your subframe for fitment.

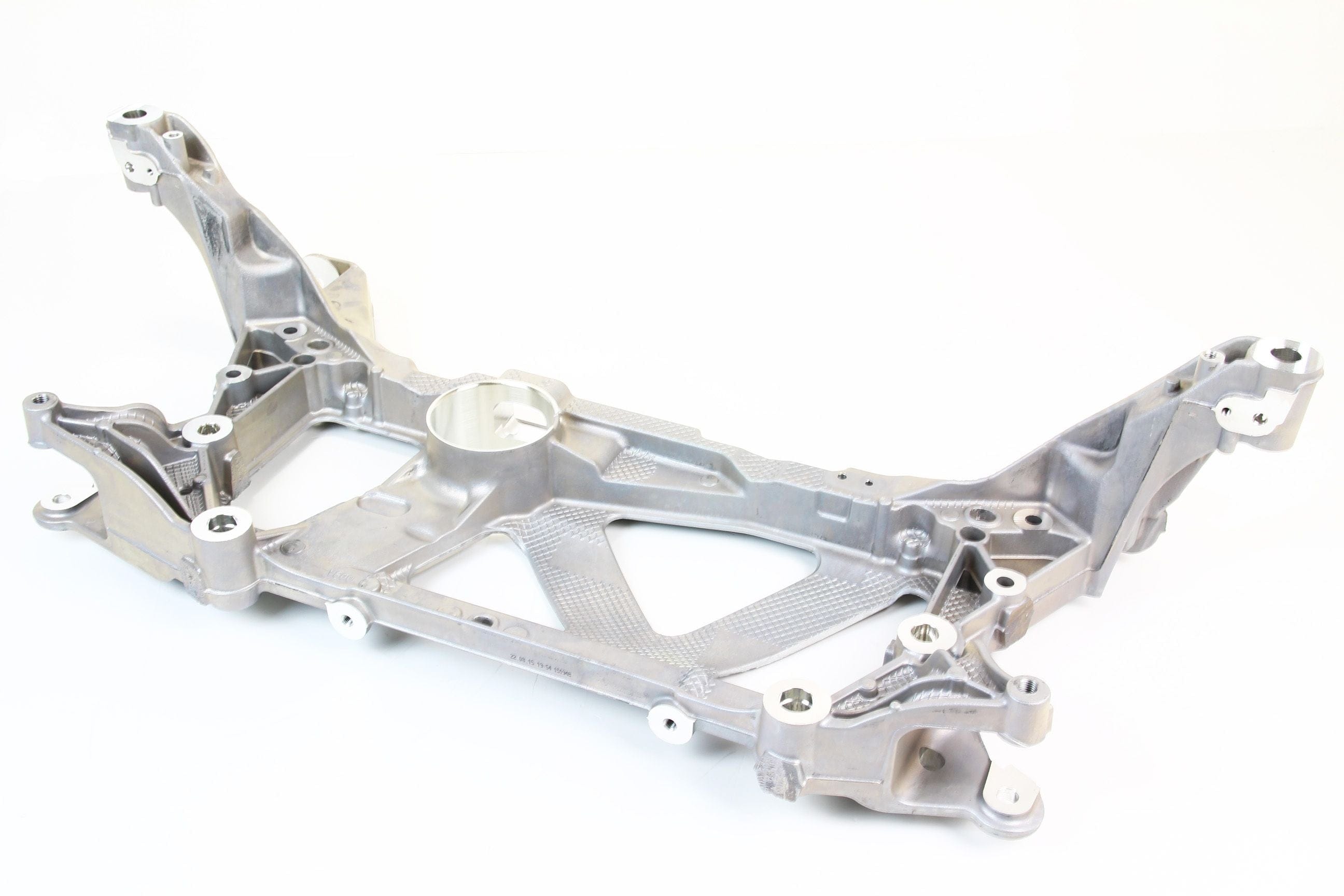

* stainless steel is for the light coloured aluminium subframe and these collars will fit any MQB vehicle fitted with this subframe.
If you have a black stamped steel subframe you need: 034-601-0043
This is one of the cheapest and overlooked easy modifications that provides huge improvement. Upon driving the whole front end feels solid especially under braking.
Designed to centre the subframe using precision-engineered stainless steel insert bushings and large-diameter bolts, this kit eliminates clunks caused by the subframe shifting, and increases chassis rigidity for improved handling performance.
Install these to stiffen up the front chassis and improve braking & steering.
This kit addresses subframe clunk/pop/creak which presents itself when taking slow turns, entering driveways, coming to a stop, and starting from a standstill. These locking collars and new factory bolts are a permanent, affordable solution to address the fundamental issue with the factory subframe design.
The upper and lower collars in our kit are specifically machined to locate the subframe and bolts perfectly and ensure hassle-free installation. The supplied bolts feature factory-correct tips and thread engagement points to prevent thread stripping. Unlike other kits on the market that use softer alloys, our 8V Audi A3/S3 & 8S Audi TT/TTS Subframe Locking Collars are made from stainless steel to prevent deformation and ensure a lifetime of performance.
Installation is very straightforward and can be performed in approximately one hour. No permanent modification to the subframe is required, and this upgrade is completely reversible.
Features:
- CNC-Machined Stainless Steel Locking Collars
- Application-Specific Design for Both Upper & Lower Locking Collars
- Engineered to Properly Locate (Center) Factory Front Subframe & Eliminate Shifting/Clunks
- Includes New Factory Subframe Bolts
- Improves Chassis Rigidity & Handling Performance
- Addresses Volkswagen Subframe Knocking Noise Permanently!
- Will Not Cause Additional NVH Transfer Inside Cabin
- Easy, Straightforward Installation Takes Approximately 1 Hour!

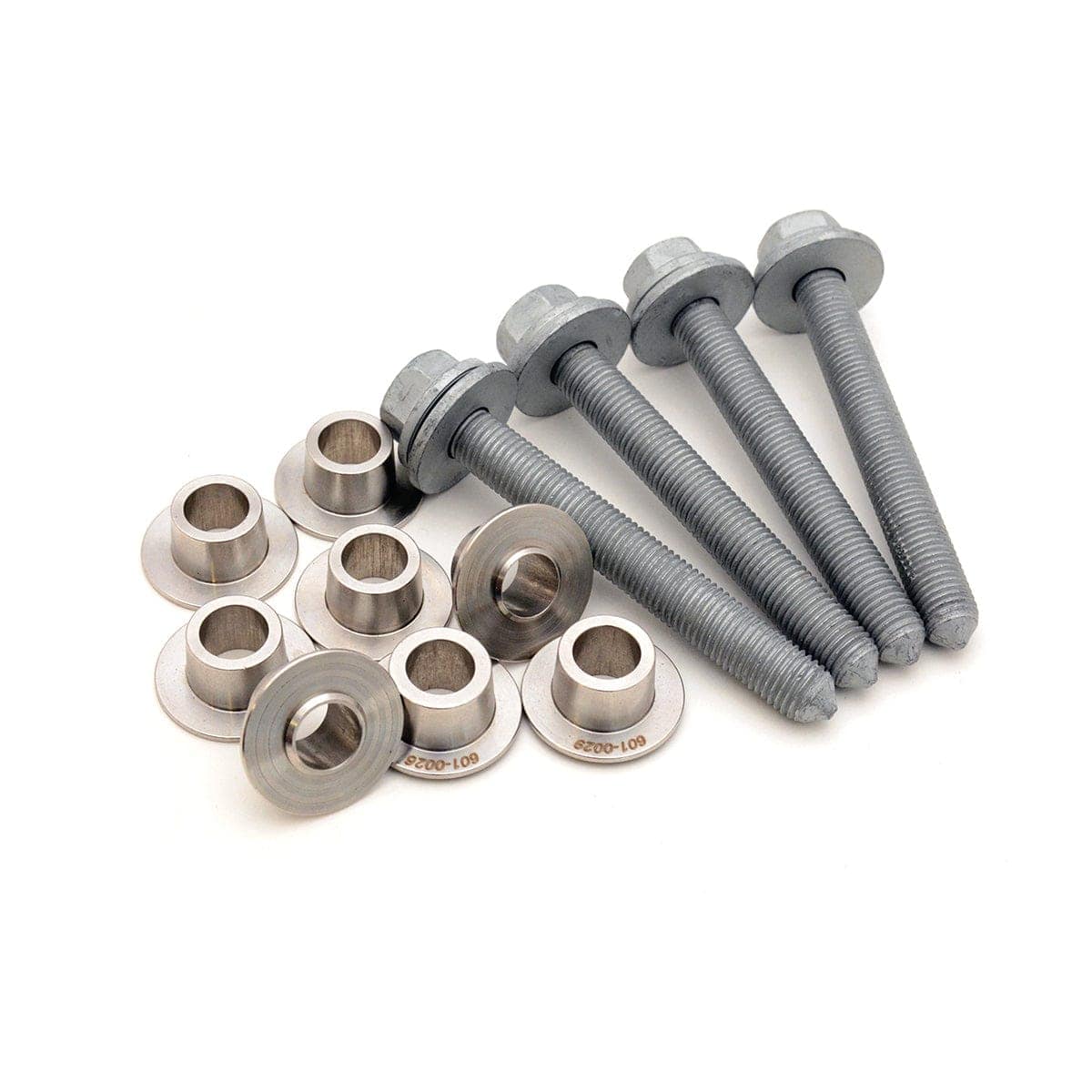

What's Included:
- 034Motorsport Stainless Steel Upper Front Subframe Locking Collars (Set of 2)
- 034Motorsport Stainless Steel Upper Rear Subframe Locking Collars (Set of 2)
- 034Motorsport Stainless Steel Lower Subframe Locking Collars (Set of 4)
- Subframe Bracket Spacing Washers (Set of 4)
- Factory Replacement Subframe Bolts (Set of 4)
Installation Instructions:
Fitment:
- 2013 - Present Audi A3/S3/RS3 (8V - MQB)
- 2017+ (MK7.5) Golf R & MK7.5 GTI (check your subframe)
- 2015 - Present Audi TT/TTS/TTRS (MkIII - MQB)
- 2022 - Present Volkswagen Golf 8 R (MQB-Evo)
- 2013 - Present any MQB VAG vehicle with aluminium subframe (check your vehicle to confirm)
Fits subframe part numbers:
- 5Q0199369G
- 3Q0199369E
