(MQB) Billet Aluminium Dogbone Mount Inserts - Volkswagen Golf MK7 GTI/R, Audi 8V S3/RS3 & MK3 TT/TTS. Version 1 - 034-509-1022

034 Motorsport Australia - Billet Aluminium (MQB) Dogbone Mount Inserts - Volkswagen Golf MK7/MK8 GTI/R, Audi 8V/8Y S3/RS3 & Audi TT/TTS MK3. Version 1. 034-509-1022.

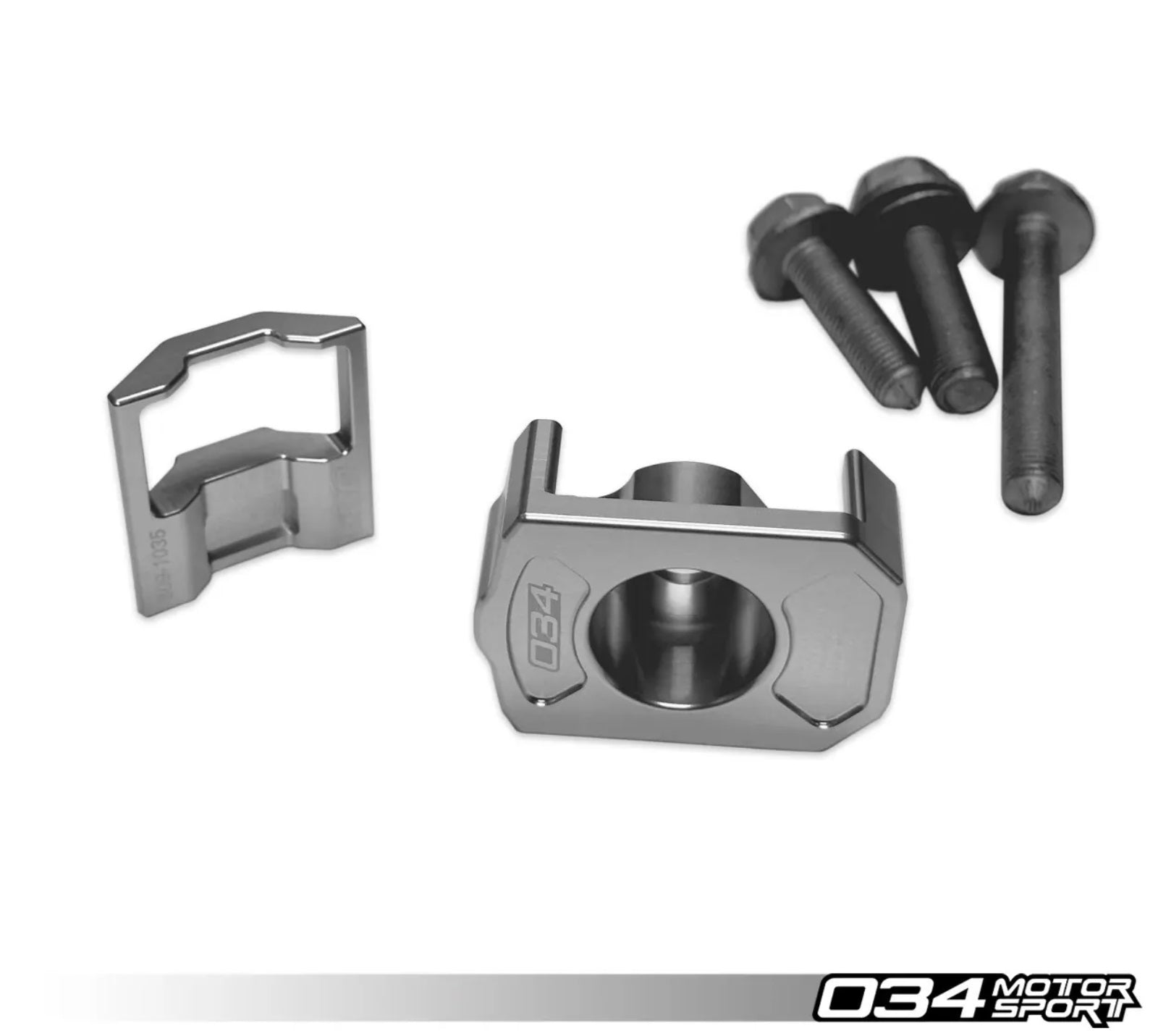

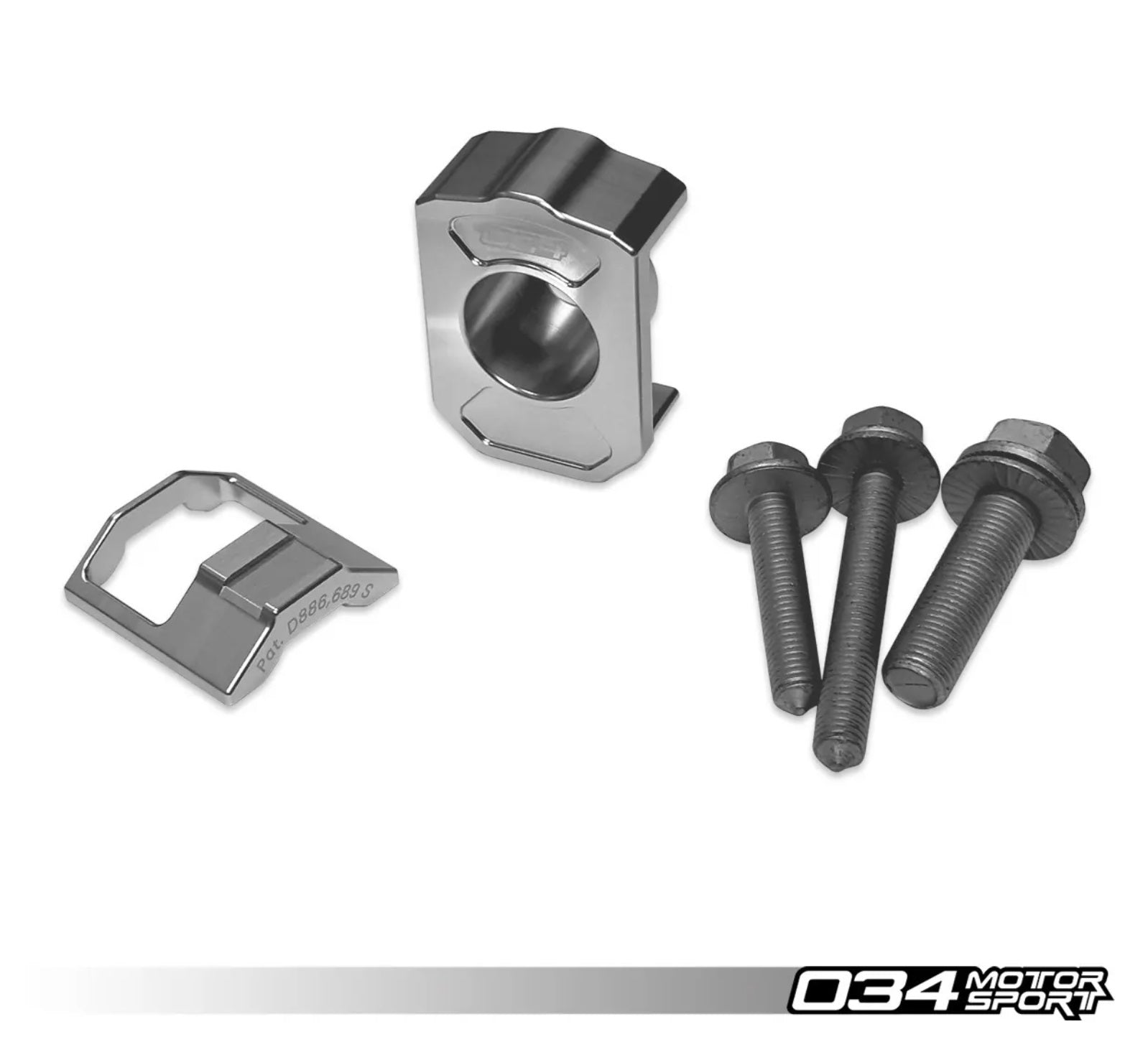

Fits MQB & MQB EVO * check your fitment! (this contains UPPER, LOWER and bolts as in the picture)

034 Motorsport is pleased to present a new performance dogbone mount (torque arm bushing) insert upgrade for the Volkswagen MK7 Golf GTI/R, Audi 8V A3/S3/RS3* & Mk3 Audi TT/TTS! - this is known as the MQB platform 2013 onwards.

* Please check your vehicle before purchase for the correct version. Especially RS3 owners.

For the ultimate set up you should pair this with the Billet Aluminium MQB UPPER Dogbone Mount Insert.

Pair UPPER with LOWER for the best performing combination. The UPPER supports the lower and provides a superior solution that just an insert alone.

All 034 parts are made of machined Billet Aluminium. If you are looking for only race engineered high quality parts choose 034.

Have you increased the power output of your vehicle beyond the factory figures and are in need of a performance mount solution to effectively deliver that power to the ground? Are you tired of excess engine/transmission movement hindering shift quality and performance? The factory dogbone mount is one of the weakest links in the drivetrain, and is engineered with voids that allow for movement, isolating the driver from the road.

This precision-machined billet aluminium insert is designed to fill the large voids in the factory dogbone mount, and limit transmission and engine movement without sacrificing ride quality or introducing any perceivable additional noise, vibration, or harshness into the cabin. By filling the void in the factory mount, this insert eliminates the associated slop and ensures that you're experiencing crisper shifts and a more direct, connected driving experience.

Engineered to work in unison with the factory rubber mount, this insert was designed using CAD software and thoroughly tested and refined to provide noticeable slop reduction without introducing excessive noise or vibration into the cabin, which is common with lesser designs. Unlike polyurethane insert options on the market, this billet aluminium part will not pack and wear over time, and guarantees long-lasting performance.

This mount was thoroughly tested by 034Motorsport and independent Audi/Volkswagen enthusiasts before release on new MQB chassis vehicles. Installation is very simple, can be performed in minutes, and is completely reversible.

• 034Motorsport Billet Aluminum MQB Dogbone Mount Insert

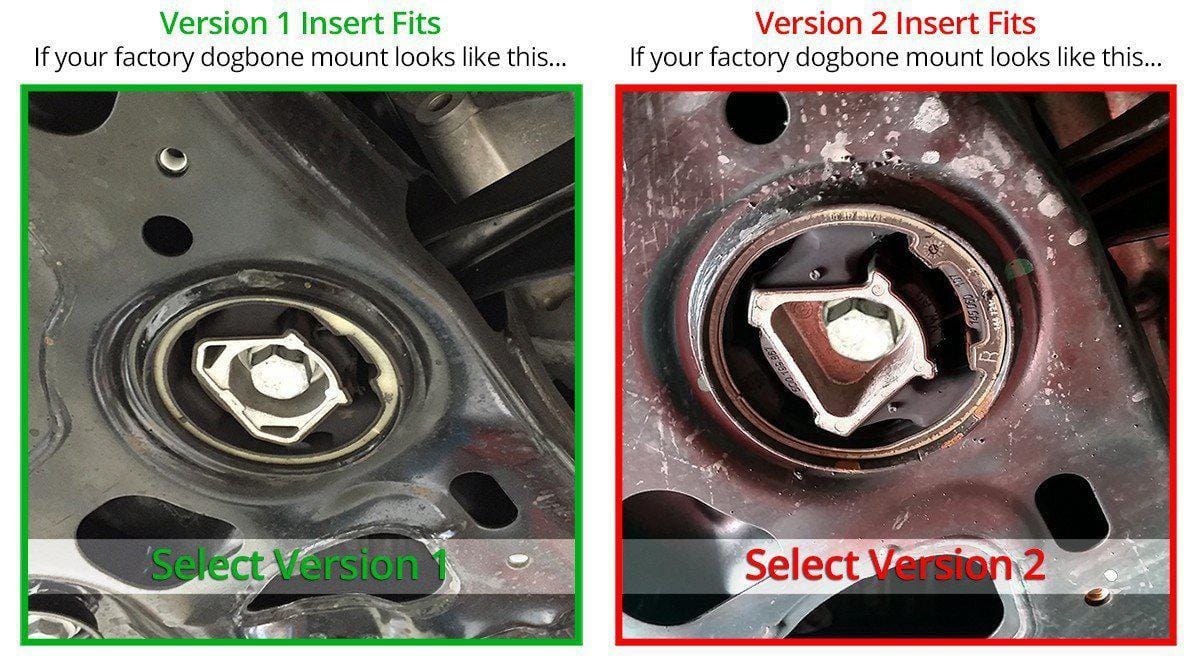

Please Note: Some Mk7 GTI & Golf R models are equipped with a different factory dogbone mount. To ensure fitment on your vehicle, please visually verify the mount you have using this guide, then select the Version 1 or Version 2 insert before adding the item to your cart.

See: Version 2

Please be aware incorrectly installed upper and lower mounts can cause NVH. Download the installation guide, use grease (supplied), no hammer or force is needed. Position the mounts correctly!

Installation guide:

MkVII Volkswagen Golf/GTI/R & 8V/8V.5 Audi A3/S3 MQB Dogbone Mount Insert Install Guide
